Geometric Dimensions
| Vehicle Length,width,and Height | 1900*680*1100 |
| Wheelbase | 1335mm |
| Rear Shelf Dimensions | 480*650mm |
| Seat To Footboard Height | 430mm |
| Footboard Clearance | 255mm |
| Footboard Length | 500mm |
| Ground Clearance | 170mm |
| Handlebar Center To Footboard Height | 750mm |
PRODUCT PARAMETERS
|
Vehicle Frame Material
|
Q235 Bent Pipe Welded Frame
|
|
Arm Material
|
6061 Forged Aluminum
|
|
Battery Type
|
21700 CAN Communication
|
|
Battery Capacity
|
48V 27A*2
|
|
Motor Type
|
Bridge Type Differential Mechanism Motor
|
|
Rated Power
|
48V 500W
|
|
Differential Speed Ratio
|
8 To 1
|
|
Controller Type
|
48V 30A Can Communication
|
|
Charger Type
|
54.6V 3A Can Communication
|
|
Display
|
One Line LED Screen / TFT LCD Screen
|
|
Tire
|
13 Inch Tubeless Tire*4
|
|
Maximum Speed
|
25km/h
|
|
Range
|
Single Battery Pack Range 40km﹙Supports Two Battery Packs 80km）
|
|
Maximum Climbing Angle
|
15°
|
PRODUCT DETAILS
-
White
-

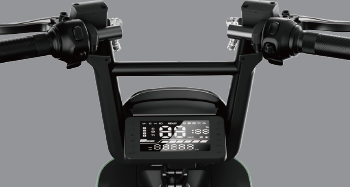

LED Dispaly / LCD Display
-
Replaceable Cargo Container
-

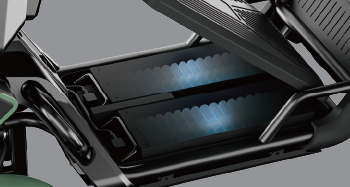

Battery Quick Swap
-

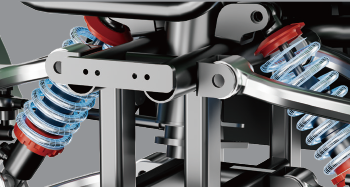

Independent Suspension
